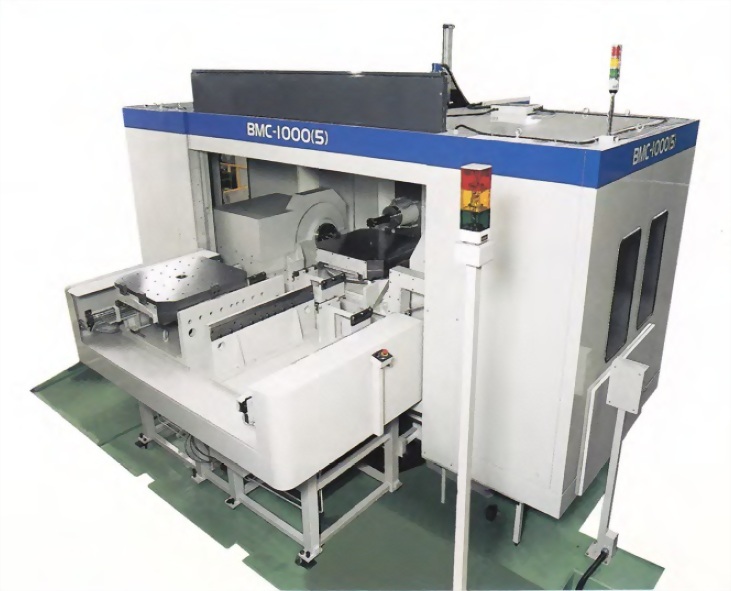

• BMC-1000(5)

BMC-1000(5)



  •       Strong and long-term stability of the five-axis simultaneous processing.
  •       Toshiba Machinery's unique dual-gear drives high-rigidity, high-precision A and B rotating shafts.


Machine specifications



 BMC-1000 (5)

X-Axis travel(pallet cross)

1500mm

Y-Axis travel(Spindle head vertical)

1500mm

Z-Axis travel(column longitudinal)

1250mm

Pallet table indexing

+10 ~ -100°

Pallet table rotation

360°

Pallet size

1000mm×1000mm

Spindle speeds

                 20 ~ 5000min-1 [40 ~ 10000min-1]

Types of tool shank

BT-50

X、Y、Z-Axis positioning accuracy (without the linear scale)

±0.008mm /full stroke

X、Y、Z-Axis positioning accuracy (with the linear scale)

±0.006mm /full stroke

A-Axis indexing accuracy (with the rotary scale)

±10sec

B-Axis indexing accuracy (without the rotary scale)

±5sec

B-Axis indexing accuracy (with the rotary scale)

±4sec

P.S: The rates in [ ] are options.


The above specifications may vary depending on the manufacturer's modified model, and the specifications at the time of actual price quoted by the company shall prevail. For detailed specifications, please contact us.
