• BM series BM-1250U

BM series BM-1250U



  •       It is suitable for the production of mass-produced parts and can also perform high-performance for large workpieces.
  •       BM-U - The A-axis rotary shaft uses a direct motor to achieve high-precision five-axis machining, and it is possible to perform machining in one time for more complex shapes.
  •       BM-Q - The standard spindle (Quill spindle) has a four-sided restrained ram design with high rigidity and strong cutting force.
  •       BM-H - The high-speed spindle with built-in motor, spindle speed is 20,000min-1.

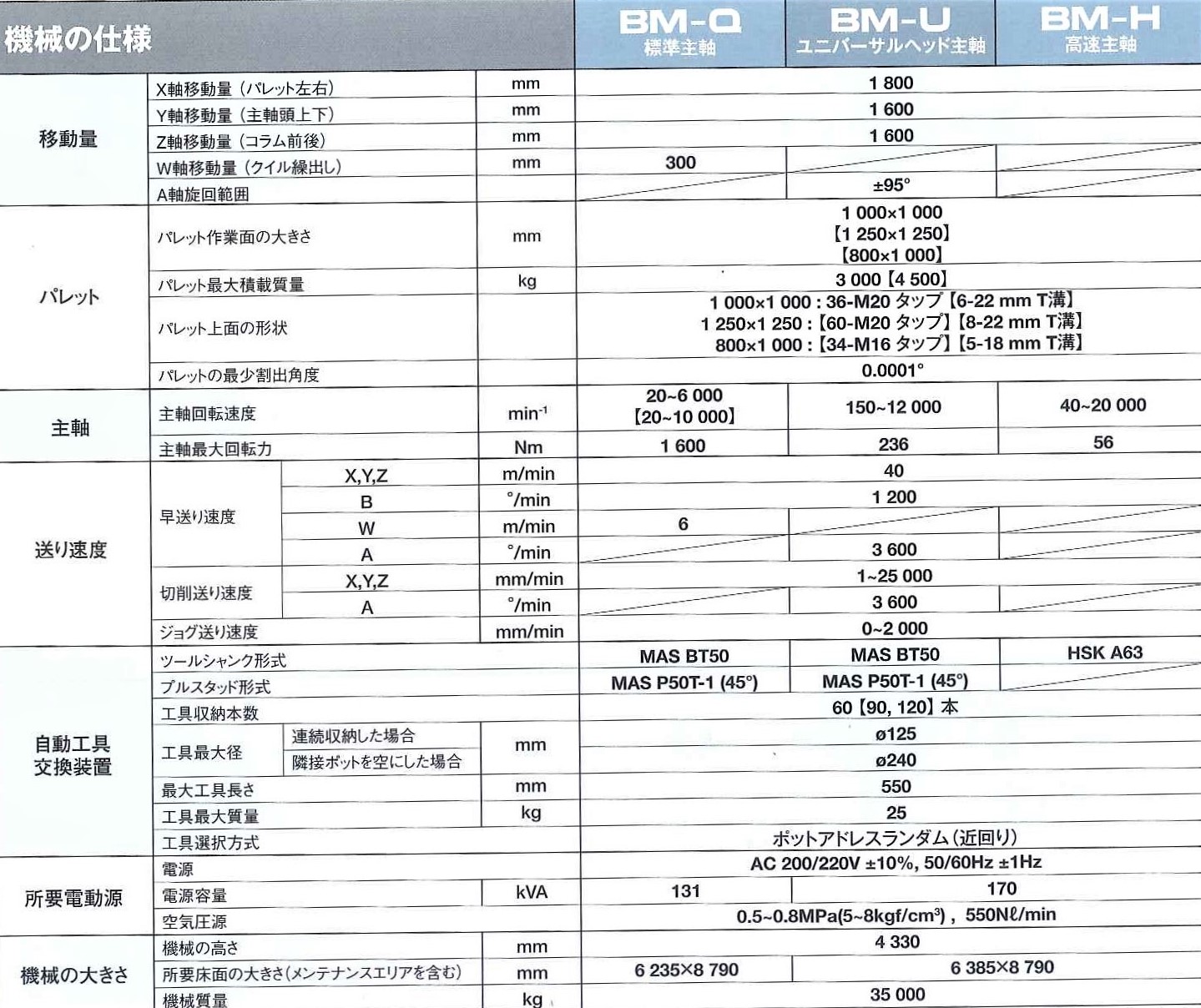

Machine Specification



BM-1250U

X-Axis travel(Longitudinal travel of table)

1800mm

Y-Axis travel(Horizontal travel of table)

1600mm

Z-Axis travel(Vertical travel of spindle head)

1600mm

A-Axis rotary angle (rotary angle of spindle head)

±95°

C-Axis rotary angle(rotary angle of table)

360°

Table size

                          1250mm × 1250mm

spindle speed

150 ~ 12000min-1

Type of tool shank

BT-50

P.S: The rates in [ ] are options.

The above specifications may vary depending on the manufacturer's modified model, and the specifications at the time of actual price quoted by the company shall prevail. For detailed specifications, please contact us.
