Products

  • 光纖集成型半導體雷射熔接設備

光纖集成型半導體雷射熔接設備



  •       The minimum beam point is up to Φ0.25mm and the shortest action distance is 90mm.
  •       The output of a single laser unit is less than 150W and the wavelength is 808nm ~ 978nm.
  •       Can be used to weld between different materials.

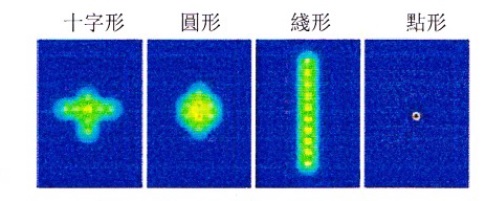

  •       The shape of the welded joint can be changed to accurately control the welding range and heat.
  •       It can be air cooled or water cooled.
  •       All mechanical design such as equipment body, electronic control, laser optical head are all arranged.
  •      It is possible to do the whole-week welding at one time without rotating the workpiece, and it is possible to achieve uniform welding without the starting point.
  •      Simple construction and low maintenance costs.

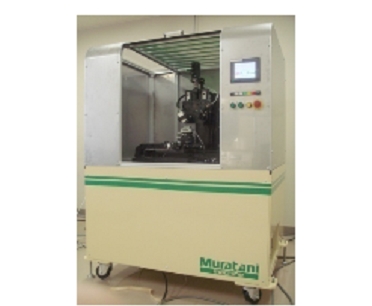

Application design case

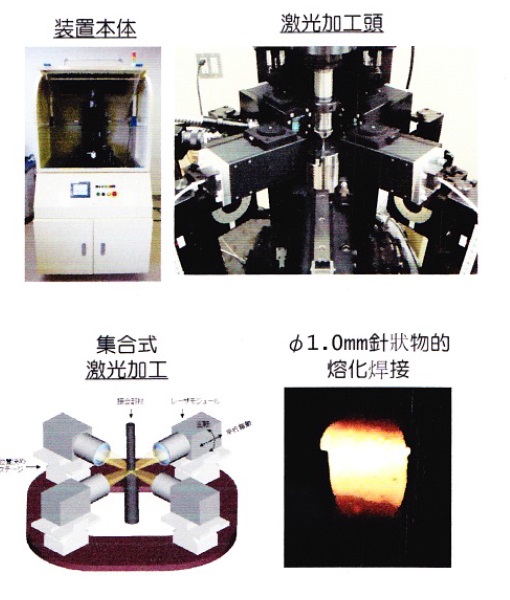

Multi Beam Laser Joining Machine [Patented]



The figure below is a reference for other fusion splicers.



The above specifications may vary depending on the manufacturer's modified model, and the specifications at the time of actual price quoted by the company shall prevail. For detailed specifications, please contact us.

 sctexco@sunchintex.com.tw 。
